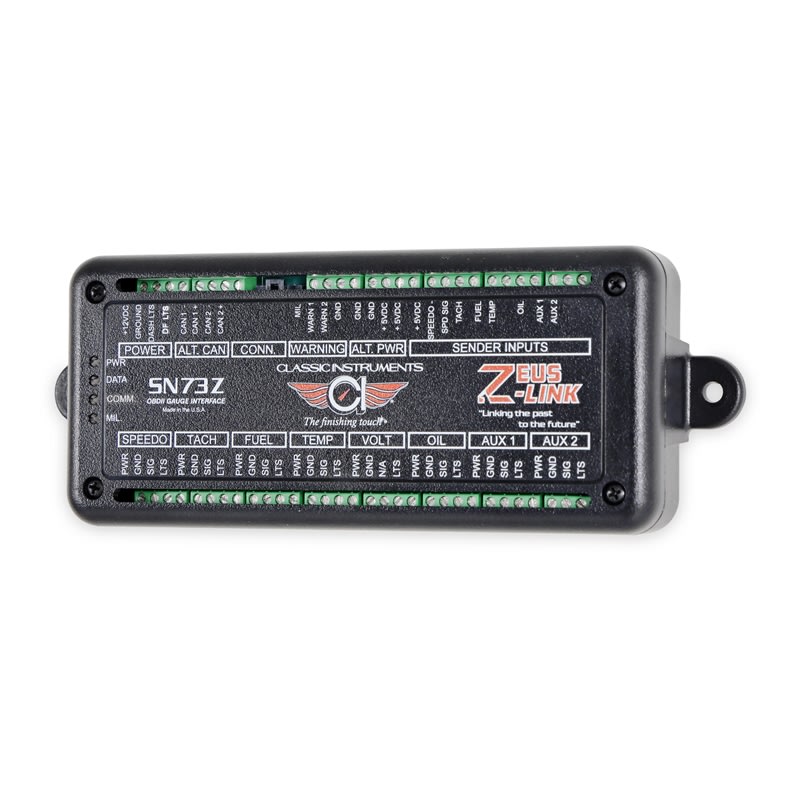

Connects to GM OBDII port
An all-inclusive gauge interface unit. Reads vehicle data from CAN BUS to drive any Classic Instruments gauges accurately. See additional part numbers for compatibility with Holley ECU’s: Sniper (SN73Z-S1) and Sniper II (SN73Z-S2)
Additional Features
- System queries vehicle upon installation to determine what list of parameters can be obtained from the vehicle and used as inputs to gauges
- Spaces for 6 standard gauges: speedo, tach, fuel, oil, volt, temp, and 2 auxiliary gauges of the customers’ choosing
- All instruments can be driven traditionally through proper senders if vehicle ECU does not support an output the driver wants to monitor
- Set up and managed all through an app available on the App Store® or Google Play®
- The app is used to configure by choosing which gauges a customer has in the dash and how each gauge gets its signal
- The app has a virtual gauge screen, aligning with the dash instruments
- The app has easy diagnostics, displays values being received by Zeus-Link and will allow user to cycle gauges to predetermined positions, to verify correct outputs and wiring
- Warning and check engine light outputs on the Zeus-Link and external contacts to light a dash light
- Dash light connection
- All gauge connections to Zeus-Link (power, ground, signal, dash lights)
- Additional resistor dongle available if needed to use multiple Holley CAN devices on the same harness
- Harness plugs direct into Zeus-Link and then to Holley ECU or OBD
- Holley harness has additional Holley ECU connector for other devices
- On-board diagnostic lights give status of power, BLE, and data on the circuit board for Zeus-Link
- Pass-through CAN port connection for other CAN devices
- Compatible with all Classic Instruments sending units and gauges
For complete installation and compatibility information please view the installation manual.
Download the app from Google Play or the App Store.
WARNING: This product can expose you to Lead which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Patent pending.
